Meet WiT-es U
Batteryless Monitoring at High Temperatures Pipeline Temperature Sensor
WiT-es U
WiT-es U is designed with an 'anatomical' fit for the critical world of industrial pipelines. It completely eliminates the contact loss that standard sensors experience on curved surfaces with its curved bottom geometry customizable to any small or large pipe diameter. While its product photos feature a design specialized for a standard pipe type (e.g. DN50), this architecture is fully adaptable to all industrial pipe dimensions. Secured to the pipe surface using energy harvesting technology, this design maximizes data transfer and energy harvesting, converting the most demanding steam and air lines into wireless & batteryless temperature data sources.

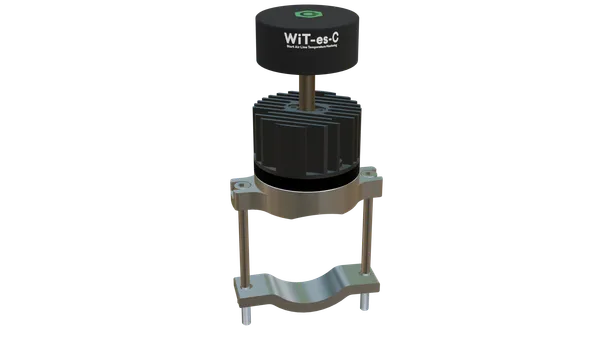

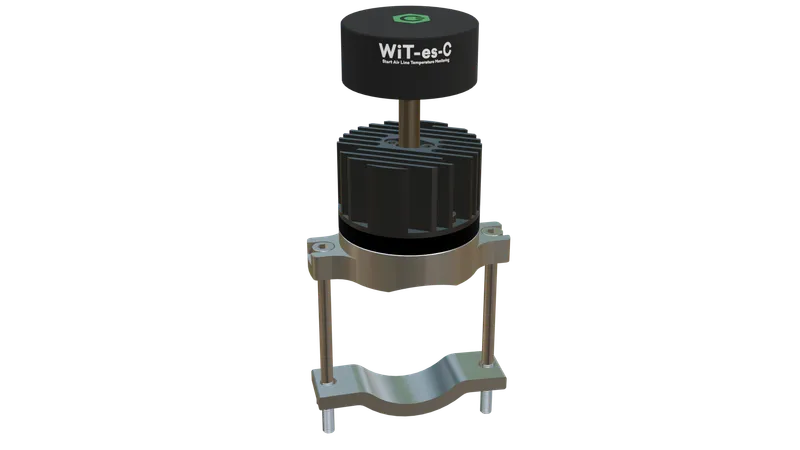

Specifically machined curved base geometry for any industrial pipe diameter, large or small. Detects the actual surface temperature by ensuring full contact with no air gaps.
While measuring the existing high heat in steam and Start Air lines, it operates by harvesting energy from this heat. Operates autonomously without cables or batteries in any line where ΔT > 5°C (difference between pipe temperature and ambient temperature).

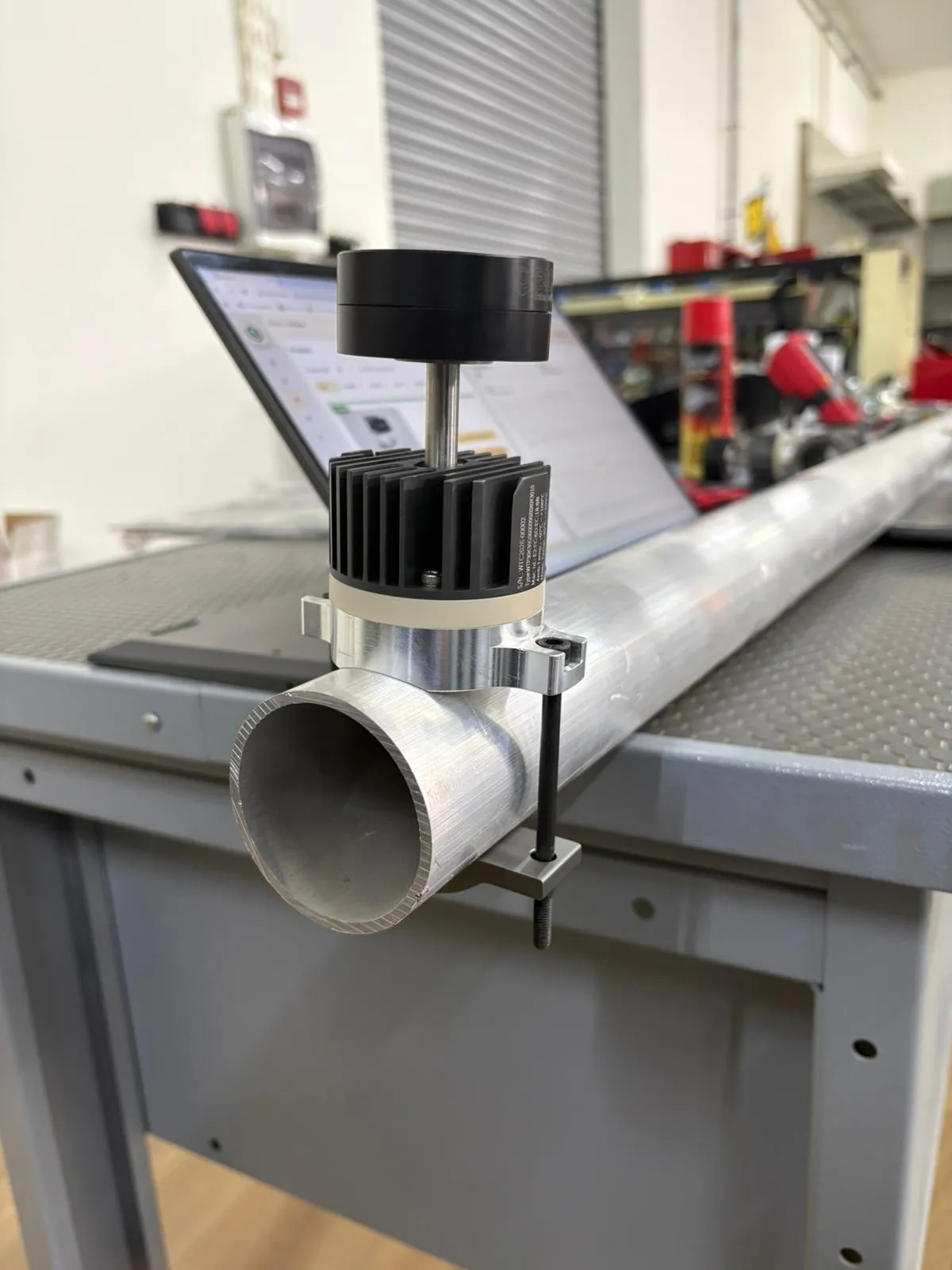

Installs in seconds without damaging the pipeline, requiring no welding or drilling. Digitalize your facility without stopping production.
Detects sudden temperature changes within milliseconds thanks to high thermal conductivity and instantly transmits data to your existing SCADA/PLC systems or ESCOM-es Dashboard via the Gateway (Wi-GaTe).
Error of Flat Sensors on Curved Lines
When standard flat-bottom sensors are mounted on curved pipes, they can only make contact along a single line. The remaining gaps fill with ambient air, causing severe measurement deviations.
Harsh Environment and Energy Demands
High-heat zones like steam lines are 'fatal' environments for battery-powered sensors. High temperatures cause batteries to discharge quickly or swell, compromising system safety.
WiT-es U: The Perfect Solution for Pipelines
With its curved structure that embraces and adapts to the pipe, WiT-es U keeps ambient air out. It offers the advantage of batteryless operation by utilizing high heat as an energy source rather than an enemy.
Meet WiT-es U
Its specially alloyed curved base maximizes heat exchange with the pipe surface of extra hot lines, maximizing energy harvesting efficiency. Fully compatible with digital, RTD, or thermocouple sensor options.
High-Frequency Reporting
Maximum contact means maximum energy. Track instantaneous temperature data in your pipeline with a data refresh rate of up to 500ms, without missing even the slightest temperature fluctuations in the processes.
Digitalization in Extra Hot Process Lines

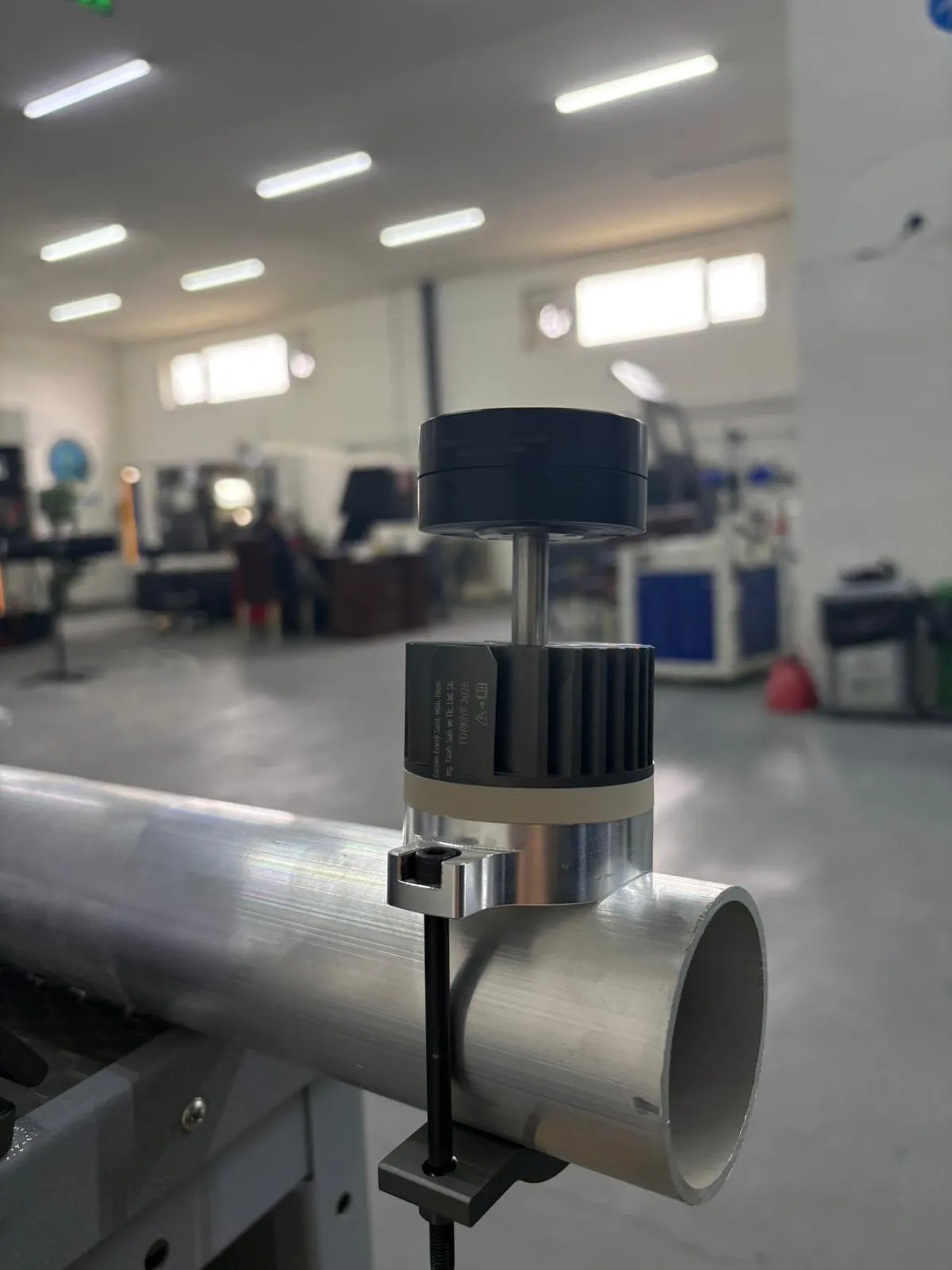

Instantly detect leaks or insulation losses in boiler rooms, superheated pipes, and high-temperature process lines through temperature changes.
Build a maintenance-free, plug-and-forget monitoring network with its IP68 robust body and customizable connection structure.
WiT-es U Technical Specifications
Perfect Solution in High-Temperature Process Lines
Meet the revolutionary batteryless industrial sensor today, fully compatible with all pipeline sizes in an adaptable curved form factor, generating its own energy from the temperature difference with the environment while measuring temperature data.
Frequently Asked Questions About the WiT-es U Model
On curved surfaces or extremely high temperatures, standard flat sensors cannot fully ensure the required contact. The WiT-es U model maximizes both energy harvesting and measurement precision with its pipe-embracing, pipe-specific curved structure.
No. WiT-es U is engineered to be adapted and customized for all small and large pipe types in industry standards. The curved base geometry customized for DN50 shown in product photos is merely one example; we custom manufacture the contact geometry to achieve a perfect fit on any pipe size at your facility.
No. WiT-es U is installed from the outside of the pipe using mechanical connections custom-designed for the pipe. This preserves the pipeline integrity.
The data is wirelessly transmitted to the Wi-GaTe Gateway. From here, it can be monitored 24/7 via your existing SCADA, PLC systems, or the ESCOM-es Dashboard.
WiT-es U is IP68 rated. This provides full protection against extremely high temperatures and harsh industrial conditions.
WiT-es U can perform precise measurements in a wide range between -193°C and +1200°C.
No. The device offers the advantage of weld-free and fast installation without damaging the pipeline.
Absolutely. The curved design of WiT-es U eliminates air gaps, ensuring maximum thermal contact and maximizing energy harvesting.
No. The WiT-es series operates completely batteryless. It is a self-sufficient system that harvests its energy from the process heat.
Since it requires no welding or drilling, installation takes only a few minutes.
Thanks to a powerful BLE antenna, it offers wireless communication distances of up to 100 meters outdoors.
Yes, full contact with the pipe and good heat transfer are important for maximum precision. Our WiT-es U model design offers the optimum solution in this regard.
Yes, it can be easily integrated into different lines thanks to custom-designed mechanical connections and various communication options.
WiT-es U supports the BLE (Bluetooth Low Energy) protocol for wireless communication.
Thanks to a data refresh rate of up to 500ms, you can monitor temperature changes in processes instantaneously.
No. Thanks to its completely wireless and batteryless operating principle, it requires no battery replacement or cable maintenance.
WiT-es U features an IP68 protection class, making it ideal for harsh industrial environments.
It can measure precisely in a wide range from -193°C to +1200°C.
A temperature difference of at least 5°C between the process temperature and environmental temperature is sufficient for the sensor to operate autonomously.
Yes, you can monitor hundreds of sensors at the same time with the Wi-GaTe Gateway and ESCOM-es Dashboard.
Yes. Thanks to its weld-free and fast installation feature, it can be installed without stopping production lines.
