WiT-es HotProbe Power
Wireless & Batteryless Surface Contact Extra Durable Temperature Sensor

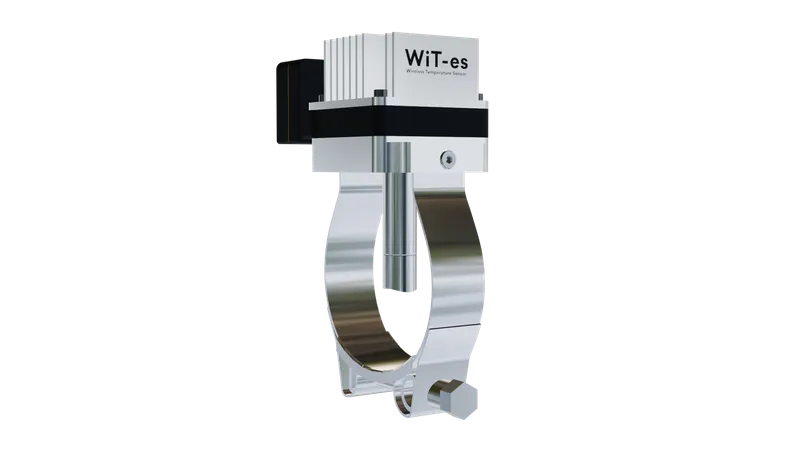

WiT-es HotProbe
Developed for high-temperature pipelines and processes, this model measures by directly contacting the surface of the pipe. The special extension (probe-like) structure designed to protect the sensor's electronic circuit from high temperatures acts as a thermal barrier. Thanks to its architecture that converts the temperature difference between the process and the environment into its own energy, it provides high-precision temperature data dominance without battery or cable hassle.
Offers excellent temperature measurement performance for high-temperature environments thanks to its surface contact design that doesn't require immersion.
Provides uninterrupted data transmission by converting the temperature difference between high-temperature processes and the surrounding environment into its own energy. No battery, no cable. Only continuous data flow. A self-sufficient energy ecosystem.
Durable thermal barrier body. With its IP68 and ATEX-certified body and the heat-protecting extension structure, it ensures absolute safety for internal electronics even in the most demanding industrial environments.
Ensures flexibility in data transfer with multi-protocol compatible Wi-GaTe. Access instantly 24/7 directly to your existing SCADA/PLC systems or the ESCOM-es dashboard.
Cabling Challenges at High Temperatures
To measure the surface temperature of your high-temperature processes, pulling meters of cables to the sensor means cable installation, cable protection, cable trays, additional labor, work force, time, and extra costs.
Battery Failures at High Temperature
Standard battery-powered sensors cannot work on high-heat surfaces. Battery chemistry degrades rapidly in these environments, creating safety risks that lead to data loss and system downtime.
HotProbe: Continuous Surface Tracking
WiT-es HotProbe eliminates the necessity of pulling cables. By performing highly accurate temperature reading from the pipe surface, it initiates an unshakable data stream with its extension protecting the electronic circuit.
Quality and Reliable Data
Take a revolutionary step in your temperature measurements. Seize the chance to monitor your high-temperature processes instantly, with high precision and 24/7 uninterruptedly with WiT-es HotProbe.
Extension Structure Protecting Electronics
Thanks to the extension structure designed to protect internal circuits from the high temperatures of the process, we enable you to measure from the 'right spot' directly on the process surface by keeping the sensor away from heat.
Smart Factories of the Future
Digitalize your high-temperature processes with wireless and batteryless technology to reduce your carbon footprint and advance to a new level in predictive maintenance.
Take control of the hottest spots in your facility with the maintenance-free HotProbe series operating in sync with your processes.
WiT-es HotProbeSurface Technical Specifications
Start Receiving Data from the Heart of Your Process
Meet the advantage of measuring with batteryless, wireless sensors on your high-temperature lines.
Frequently Asked Questions
The main body of the device is durable up to +105°C. The contacting measurement tip can be used on surfaces up to +1200°C thanks to special materials. The extension structure in between acts as a thermal barrier protecting the electronic circuit.
The power source of WiT-es HotProbeSurface is batteryless thermoelectric harvesting.
WiT-es HotProbeSurface operates without batteries and cables by utilizing the already existing heat within the process to generate energy via thermoelectric harvesting.
No. You can customize the extension distance at the order stage according to the process temperature and pipe insulation thickness in your facility.
No. With Wi-GaTe developed by ESCOM-es, we offer uninterrupted data transmission in challenging factory environments, even between metal tanks.
Since energy is generated via thermoelectric harvesting without battery life, the sensor can be used indefinitely as long as there is a temperature difference.
Yes. WiT-es HotProbeSurface has ATEX certification.
The IP protection class of WiT-es HotProbeSurface is IP68.
The data sampling rate of WiT-es HotProbeSurface is ≥ 500ms.
