CoRoM Connecting Rod Bearing Sensor
24/7 Autonomous Bearing Monitoring For Wärtsilä 50 Engines
CoRoM Wärtsilä 50
CoRoM Wärtsilä 50 is a batteryless telemetry system providing instant bearing metal temperature data for Wärtsilä 50DF engines.

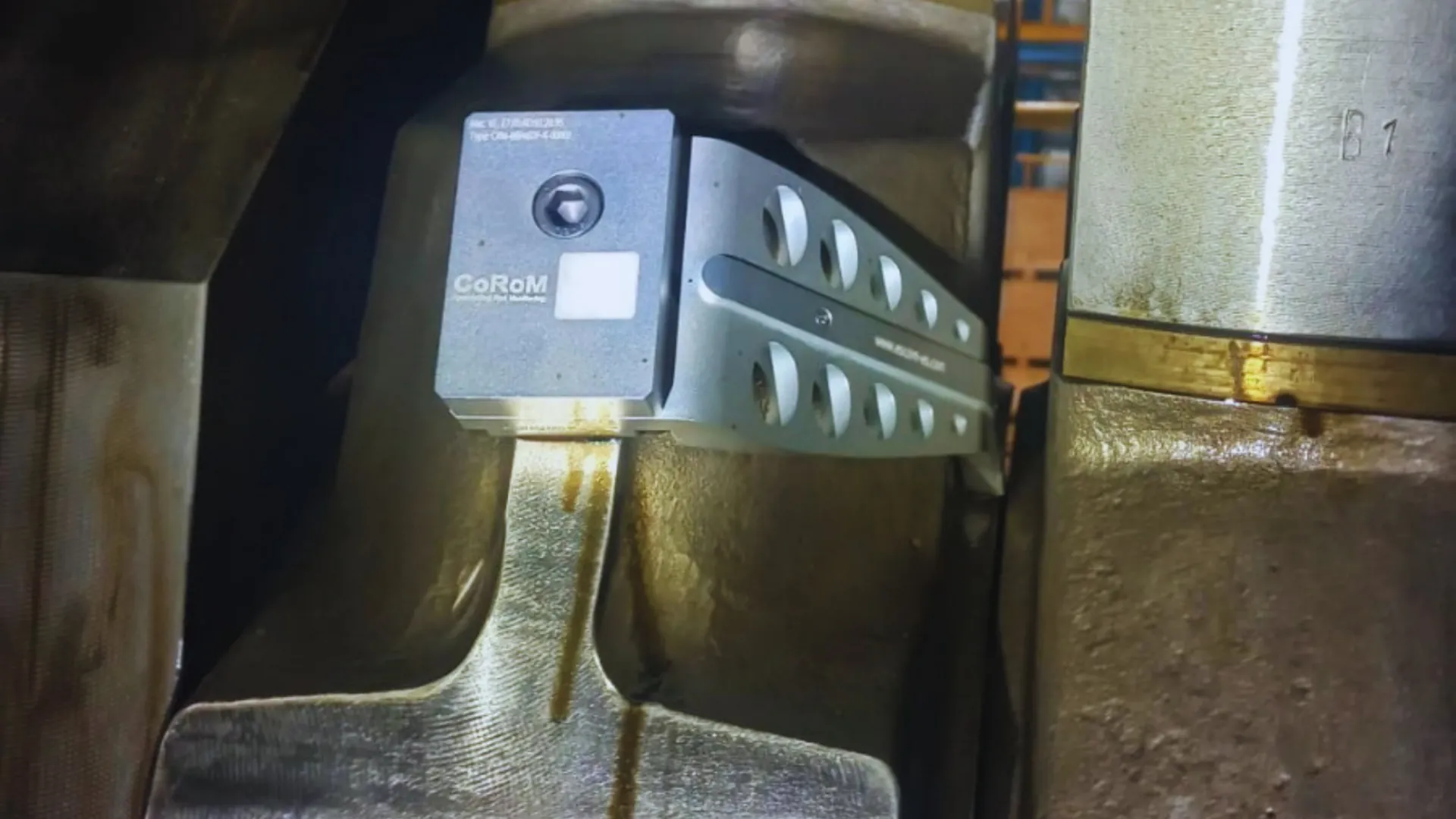

Mounted directly on the con-rod bearing cap, CoRoM is the world's first batteryless bearing monitoring sensor requiring zero battery replacement, cabling, or external power.
Generates electricity directly from the mechanical acceleration of the piston and con-rod. Zero battery explosion or thermal runaway risk in high-temperature crankcase environments.
Measures bearing metal temperature and splash oil temperature simultaneously, capturing micro-friction at the source long before Oil Mist Detectors (OMD) detect smoke.
Transmits data via BLE to the Wi-GaTe receiver gateway outside the crankcase, providing seamless data via Modbus RTU, Modbus TCP/IP, and Profinet to vessel AMS and SCADA.
Why Traditional Oil Mist Detectors Are Too Late
Oil Mist Detectors (OMD) and splash oil temperature systems used in marine engines are inherently reactive. They trigger alarms only after oil mist reaches critical levels in the crankcase. By the time smoke appears, the bearing has already melted, seized to the crankshaft, and micro-cracks have formed.
Unplanned Downtime & Severe Financial Impact
A bearing seizure leads to crankshaft re-grinding, complete crankshaft replacement, con-rod fracture, and engine block destruction. The resulting off-hire loss for shipowners and plant operators is immense.
Preventing Damage at the Source with CoRoM
CoRoM does not wait for smoke. It detects metal temperature rise at the very onset of metal-to-metal contact, protecting the crankshaft 100% and preventing major overhaul costs.
Non-Intrusive & Non-Destructive Easy Installation
CoRoM is easily installed without any drilling, tapping, welding, or mechanical modification to the connecting rod thanks to its design tailored to engine models. Engine OEM warranty and structural integrity remain 100% intact. Installation takes an average of 10-15 minutes per cylinder.
Dual Thermal Sensor Smart Diagnostics
Compares con-rod bearing metal temperature with splash oil temperature in milliseconds, distinguishing lubrication failure from mechanical wear to provide precise diagnostics.
Autonomously Monitor Your Fleet's Bearing Health
CoRoM sensors feed the most critical data into your engine's digital twin. Powered by kinetic energy harvesting, these sensors work in full synergy with the external Wi-GaTe receiver gateway.
Sensor & System Parameters
| Property | Value |
|---|---|
| Sensor Weight | 495 g |
| Body Dimensions | 150 mm x 80 mm x 205.2 mm |
| Target Engine | Wärtsilä 50DF |
| Mounting Method | Wärtsilä 50DF Con-Rod Custom Mounting Bracket |
| Power Source | Batteryless (Kinetic Energy Harvesting) |
| Sensing Parameters | Dual Redundant Thermal (Bearing Metal & Splash Oil) |
| Wireless Network | BLE (Bluetooth Low Energy) - Industrial Class |
| Operating Temp | -40°C to +105°C |
| Protection / Ex | IP68 / ATEX Ex ia IIC T4 Ga |
| SCADA / AMS Outputs | Via Wi-GaTe: Modbus RTU, Modbus TCP/IP, Profinet |
Secure Your Wärtsilä 50 Engine
CoRoM Wärtsilä 50 is a wireless batteryless immersion probe connecting rod bearing temperature sensor powered by kinetic energy harvesting for Wärtsilä 50DF engines.
Frequently Asked Questions
Oil Mist Detectors (OMD) are reactive systems; they trigger alarms only after bearings melt and release oil mist. CoRoM Wärtsilä 50 is proactive, detecting metal temperature rise on Wärtsilä 50DF con-rods before smoke occurs.
No. Splash oil systems suffer from thermal lag. CoRoM Wärtsilä 50 establishes direct physical contact with the Wärtsilä 50DF con-rod cap metal for zero-delay measurement.
CoRoM Wärtsilä 50 contains zero chemical batteries. It harvests kinetic energy directly from the reciprocating motion of the Wärtsilä 50DF piston and con-rod.
No. Integrated ultra-low-power energy storage modules ensure uninterrupted 24/7 operation even while the Wärtsilä 50DF engine idles.
The Wi-GaTe receiver gateway provides Modbus RTU, Modbus TCP/IP, and Profinet outputs directly to vessel AMS and SCADA.
No. CoRoM Wärtsilä 50 is installed non-intrusively without any drilling or welding on Wärtsilä 50DF con-rods, preserving 100% OEM warranty.
Yes. Fully compliant with ATEX / IECEx Ex ia IIC T4 Ga standards for safe operation in explosive atmospheres.
CoRoM Wärtsilä 50 completely pays for itself on the very first prevented bearing seizure by avoiding multi-million dollar crankshaft overhauls.
